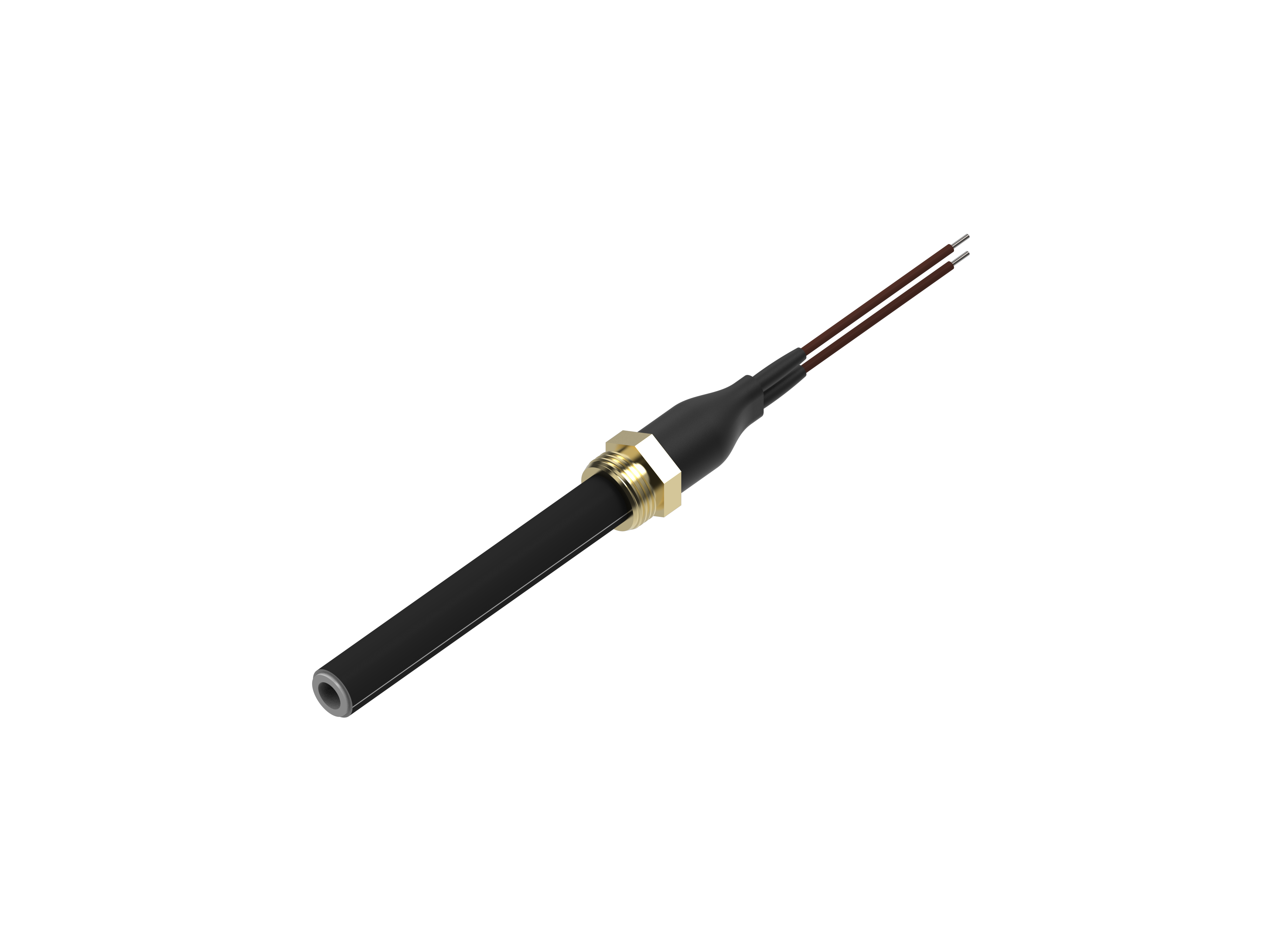

Ceramic Igniters are the mainly ignition elements to be used for pellet stoves, burners, boilers and grills nowadays. With a service life over than 5 years and Max. temperature over than 1000 ℃, it is a very competitive ignition solution for biomass heating industry.
| Order No. | Model | Dimensions | Spec. | Wire Length | Max. Temperature
|
| Ref. | mm | V | W | mm | ℃ |
| 2102330 | eT-C1
| 11.55*107 | 230 | 300 | 350 | 1000 |
| 2111225 | 11.55*107 | 120 | 250 | 350 | 1000 |
| 2202330 | eT-C2 | 11.55*112 | 230 | 300 | 350 | 1000 |
| 2211225 | 11.55*112 | 120 | 250 | 350 | 1000 |
| 2602330 | eT-C6 | 11.55*107 | 230 | 300 | 350 | 1000 |
| 2611225 | 11.55*107 | 120 | 250 | 350 | 1000 |
| 2702330 | eT-C7 | 11.55*107 | 230 | 300 | 350 | 1000 |
| 2711225 | 11.55*107 | 120 | 250 | 350 | 1000 |
| 2802325 | eT-C8 | 10.55*93
| 230 | 250 | 500 | 1000 |
| 2811220 | 10.55*93 | 120 | 200 | 500 | 1000 |
| 2902315 | eT-C9 | 10.55*93 | 230 | 150 | 500 | 1000 |
Main Specifications:
Body Material: 95% Al2O3
Resistance Wire: Tungsten wire
Wire: Red silicon rubber insulated 200℃ high temperature wire
