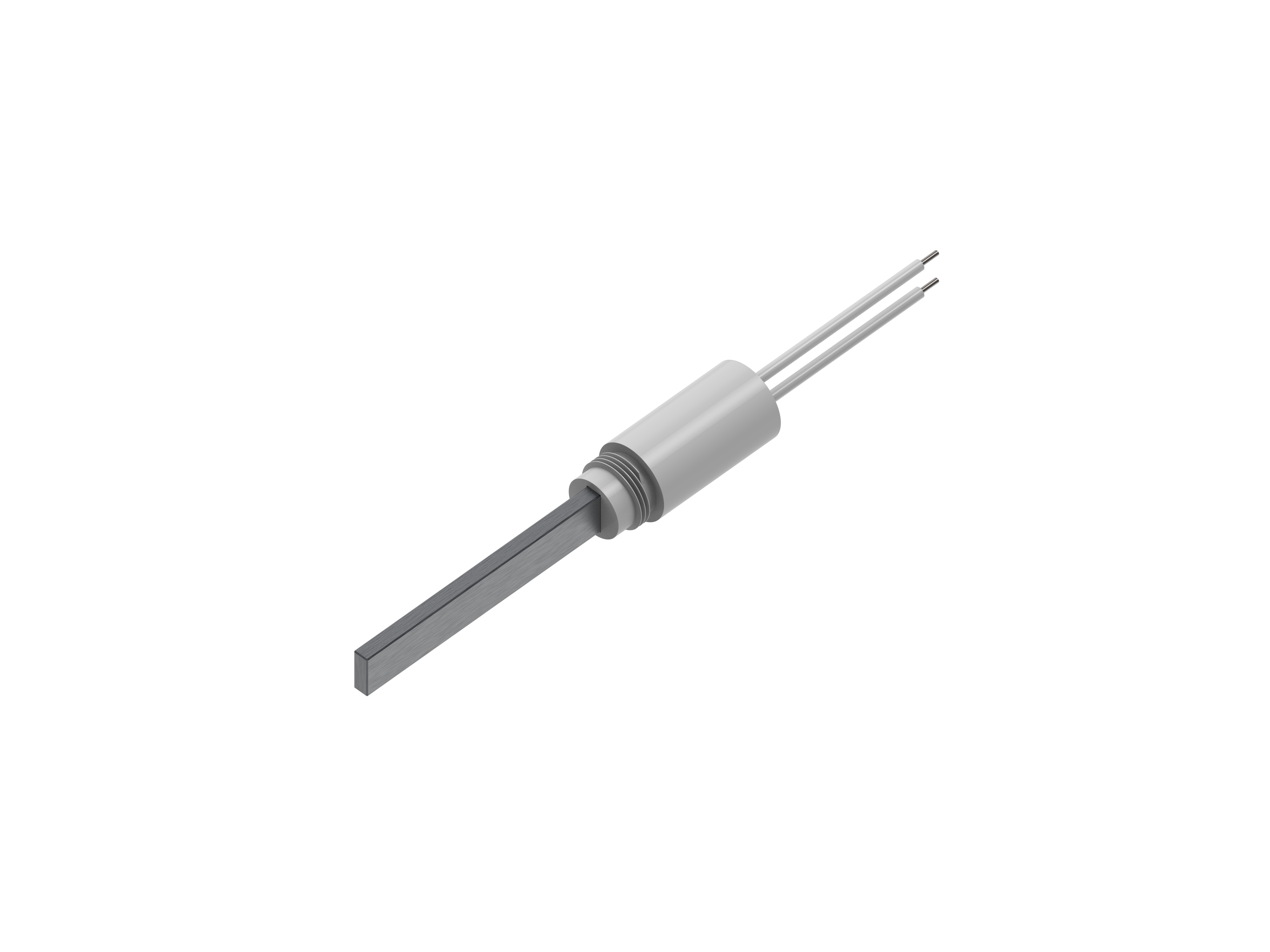

Quartz Igniters
Max Temperature:1200 ℃
Description:Ignition in less than 60 seconds
Applications: Pellet Stoves, Pellet Burners, Pellet Boilers, Pellet Grills...
Note:Customized models are available
Download: PDF
Next None

Detailed introduction

Our quartz Igniters which are made by premium quality Si3N4 powder are simply a very reliable ignition solution for biomass heating applicances. With faster ignition time in less than 60 seconds and long service life over than 7 years, it is a wonderful option for your stoves, burners, boilers and/or grills by all means.


Order No.
MoldeDimensionsSpec.Wire LengthMax. Temperature
Ref.mmVWmm
1102330eT-N192*10.8*42303005001100
11023352303505001100
11012401204005001200
1202330eT-N290*10.8*42303005001100
12023352303505001100
12012401204005001200
1302330eT-N3100*10.8*42303005001100
13023352303505001100
13012401204005001200
1402330eT-N4100*10.8*42303005001100
14023352303505001100
14012401204005001200


Main Specifications:

Body Material: Si3N4

Resistance Wire: Tungsten wire

Wire: White mica coated 550℃ high temperature wire
