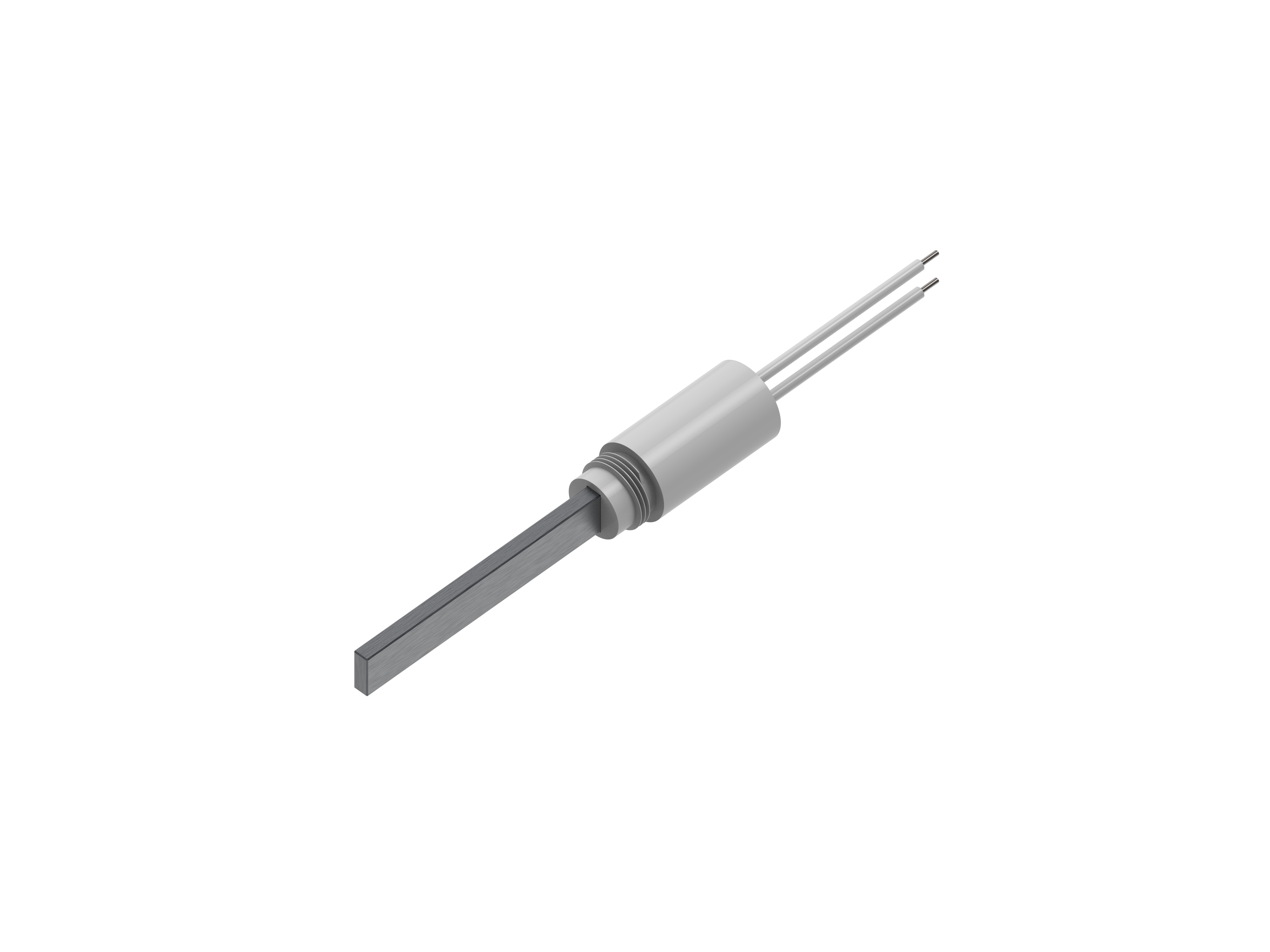

Our quartz Igniters which are made by premium quality Si3N4 powder are simply a very reliable ignition solution for biomass heating applicances. With faster ignition time in less than 60 seconds and long service life over than 7 years, it is a wonderful option for your stoves, burners, boilers and/or grills by all means.
Order No.
| Molde | Dimensions | Spec. | Wire Length | Max. Temperature
|
| Ref. | mm | V | W | mm | ℃ |
| 1102330 | eT-N1 | 92*10.8*4 | 230 | 300 | 500 | 1100 |
| 1102335 | 230 | 350 | 500 | 1100 |
| 1101240 | 120 | 400 | 500 | 1200 |
| 1202330 | eT-N2 | 90*10.8*4 | 230 | 300 | 500 | 1100 |
| 1202335 | 230 | 350 | 500 | 1100 |
| 1201240 | 120 | 400 | 500 | 1200 |
| 1302330 | eT-N3 | 100*10.8*4 | 230 | 300 | 500 | 1100 |
| 1302335 | 230 | 350 | 500 | 1100 |
| 1301240 | 120 | 400 | 500 | 1200 |
| 1402330 | eT-N4 | 100*10.8*4 | 230 | 300 | 500 | 1100 |
| 1402335 | 230 | 350 | 500 | 1100 |
| 1401240 | 120 | 400 | 500 | 1200 |
Main Specifications:
Body Material: Si3N4
Resistance Wire: Tungsten wire
Wire: White mica coated 550℃ high temperature wire
